IQF Freezer for Seafood

Indus Fluidized IQF Belt Freezer
We are the prominent manufacturer, exporter and supplier of the best array of IQF Machines. These machines are used in various food processing industries. The offered machines are manufactured with the aid of screw compressor package, high pressure receiver, accumulator and evaporation condenser. Apart from this an electric control panel which is located at the discharge end of system controls all possible wiring inside it. Clients can avail the offered machines from us as per their requirements.

Backed by our rich industrial experience in this domain we are able to offer wide gamut of IQF Out Feed to our clients. The offered product is used in a number of food industries for keeping food items like fishes, fish finger, fruits, vegetables etc for longer time with freshness and quality. This product is the best refrigerant which works on the bases of eon system and ammonia centralization refrigeration system. The offered product is applicable for retrograding, after glaze handling, chilling freezing, etc. Clients can avail the offered product from us as per their requisites.

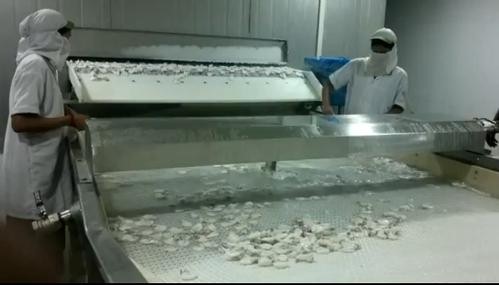

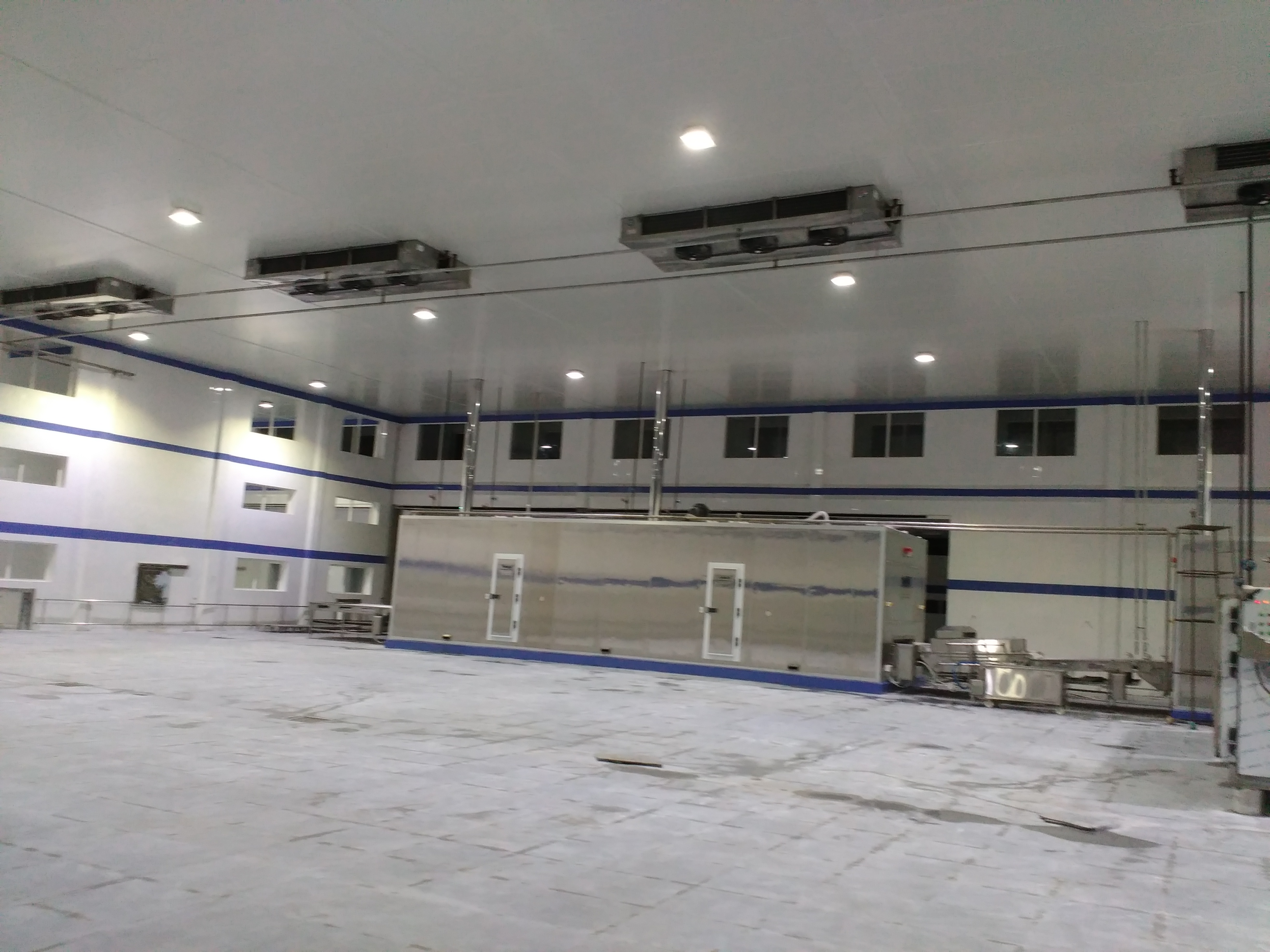

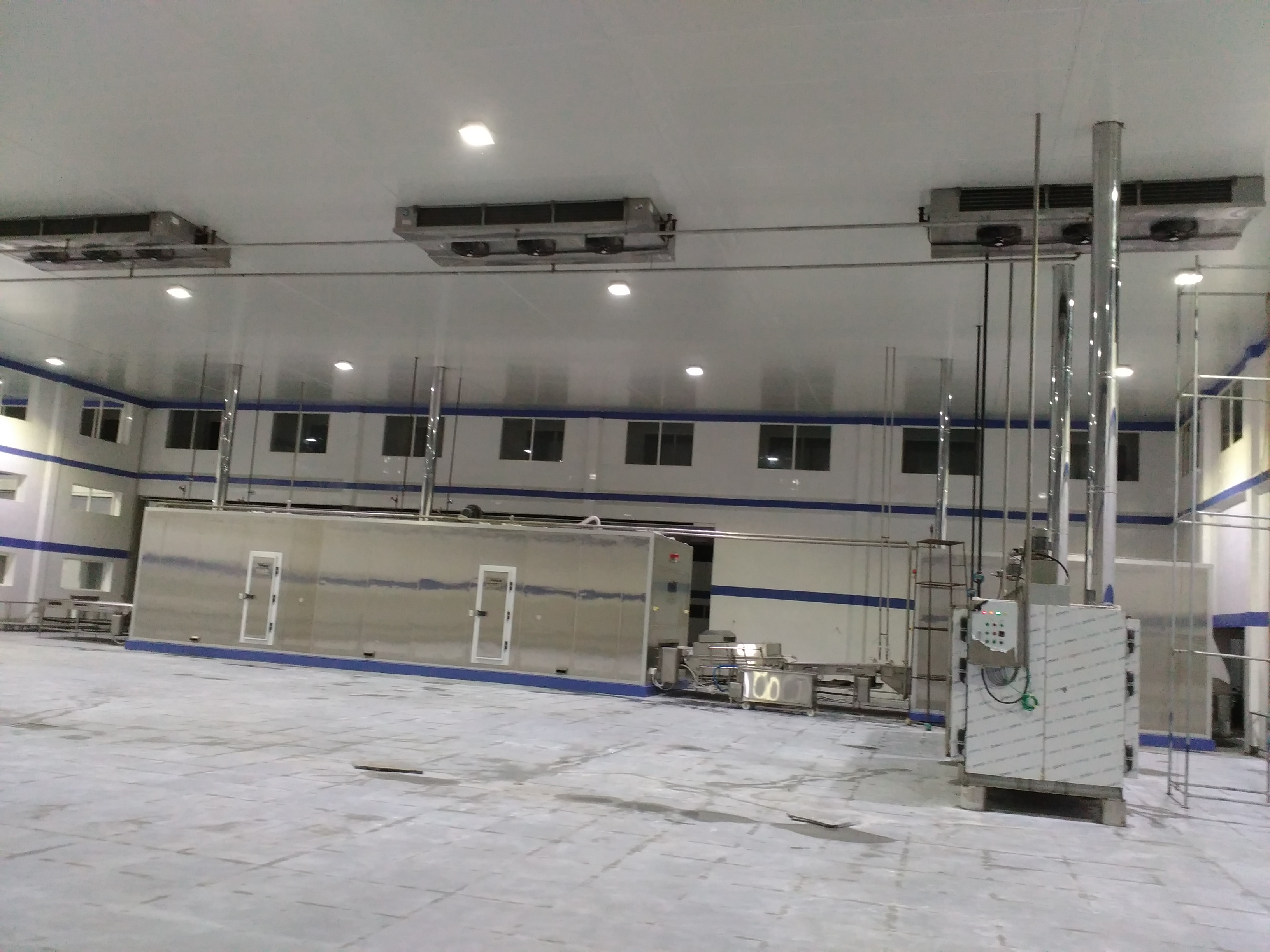

The Indus Fluidized IQF belt freezer is used for the production of IQF products especially for the fruits and vegetables industry. It operates on the vertical blowing principle. The product is placed on the stainless steel belt and is led past centrifugal blowers. This creates sufficient volume of air which is blown from under the stainless steel belt. Due to this, the fruits and vegetables are in the stage of fluidization which prevents clumping of product. Centrifugal fans circulate the temperature through the evaporates which reduces the temperature to below -35 Deg C. This quickly reduces the temperature of the product down to -18 Deg C.

The Cabinet is made out of PCGI / SS sheets with PUF insulation.

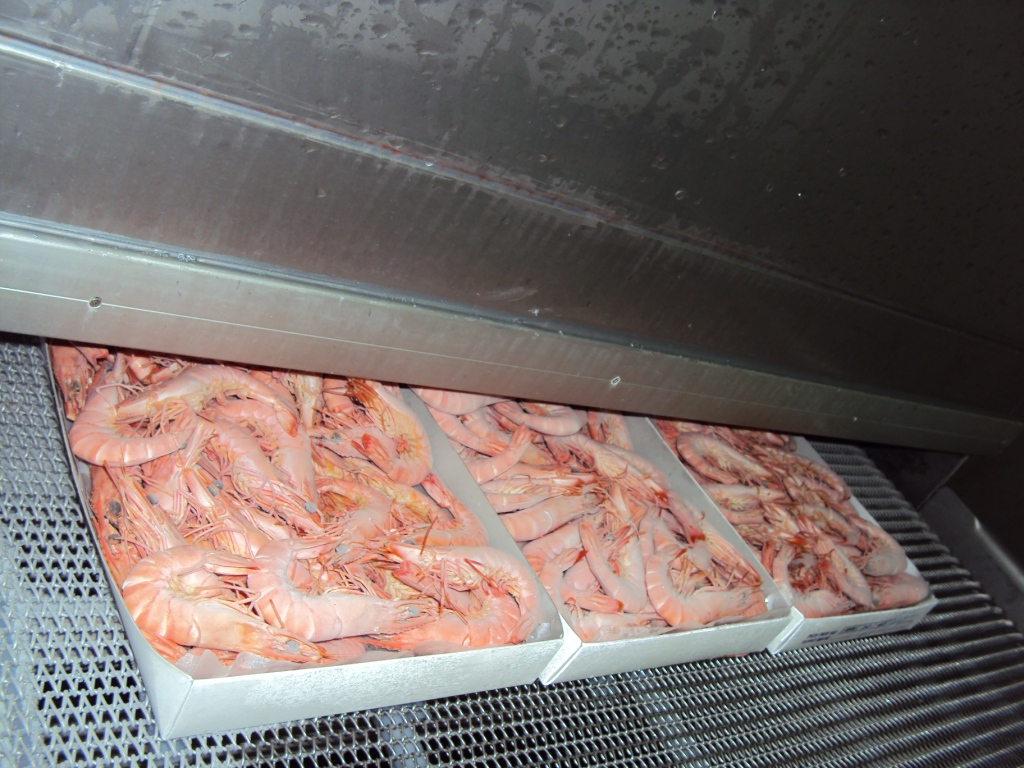

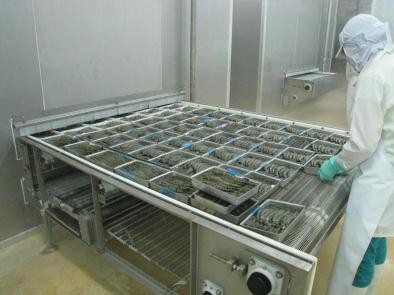

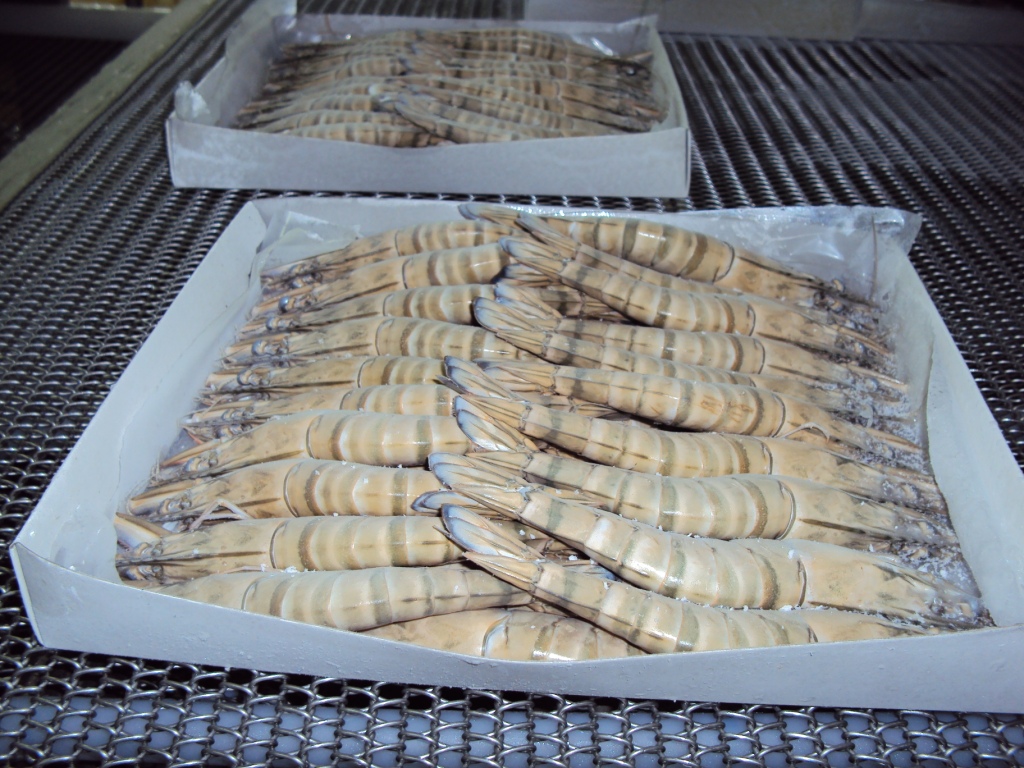

SS 316 grade wire mesh belt is provided in two stages for conveying the product through the freezers. The arrangement is complete with SS support frame, SS chain links, sprockets and rollers wear strips and SS product guards.
Conveyor belt speed can be varied to match the product size and output and this is complete with gear box, gear box drive motor and mounting frame and control for variable speed.
Evaporator cooling coil covering the length of the belt is fabricated from SS / CDW tubes and Aluminum fins with variable fin spacing for allowing longer time between defrost period.

Heavy duty high static centrifugal fans develops the necessary pressure for fluidization and is driven by heavy duty special motors of variable speed suitable for operating in low temperature atmosphere.
Control cum starter panel for the IQF is complete with digital indicators, sensors, variable frequency drivers for the gear box motors and drive for the fan motors.
